ArchitEX™ FRP Structural Profiles
ArchitEX™ FRP WF BEAM SOLUTIONS
The section properties displayed on this page are derived from the standard profile dimensions. All profile configurations listed within the catalogue can be supplied, although selected sizes may be subject to stock availability across regional distribution centres. For current availability, technical support, and pricing details, please contact Treadwell Group Asia.

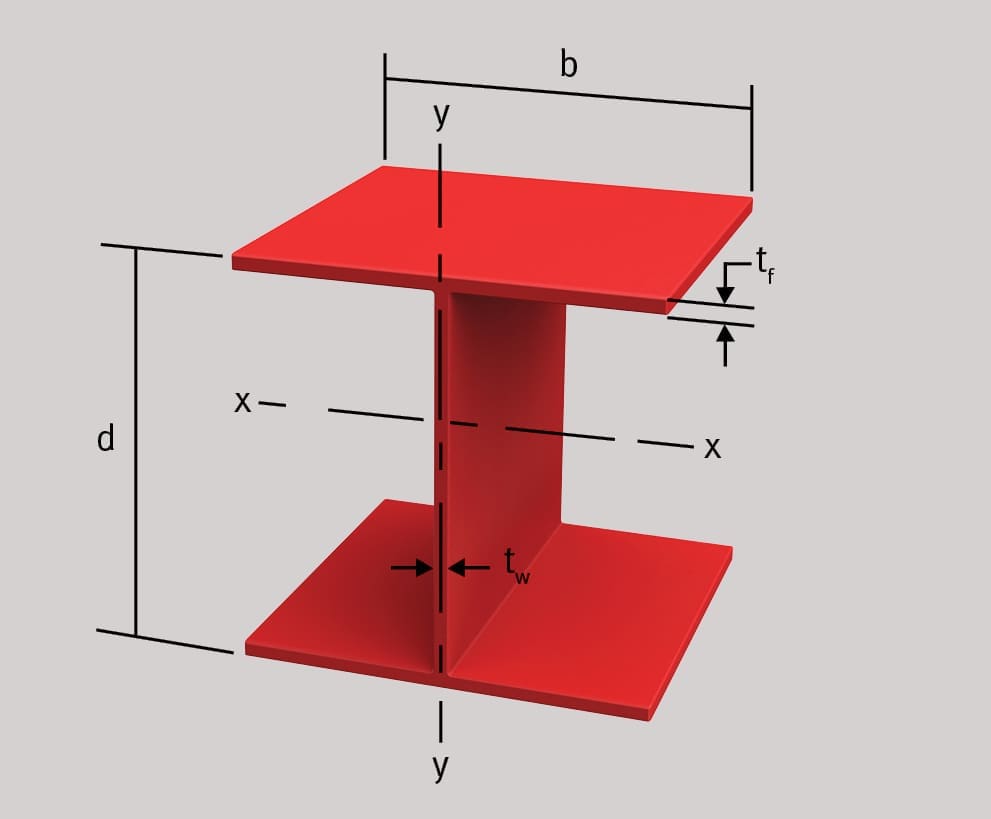

| WF Section | Section Dimensions | Section Properties | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Part | Part Number |
d mm |
b mm |
tw mm |
tf mm |
Area mm2 |
Weight kg/m |
x-x | y-y | ||||
| Web | Flange |
l mm4 |
S mm3 |
r mm |
l mm4 |
S mm3 |
r mm |
||||||
| 76.2 x 6.4mm | ARX-WF07606 | 76.2 | 76.2 | 6.4 | 6.4 | 1374.2 | 2.5 | 1319454 | 34577 | 31.0 | 470342 | 12290 | 18.5 |
| 101.6 x 6.4mm | ARX-WF10206 | 101.6 | 101.6 | 6.4 | 6.4 | 1864.5 | 3.4 | 3304878 | 65057 | 42.2 | 1111338 | 21959 | 24.4 |
| 152.4 x 6.4mm | ARX-WF15206 | 152.4 | 152.4 | 6.4 | 6.4 | 2832.3 | 5.1 | 11771025 | 154530 | 64.5 | 3750245 | 49161 | 36.3 |
| 152.4 x 9.5mm | ARX-WF15210 | 152.4 | 152.4 | 9.5 | 9.5 | 4180.6 | 7.5 | 16720016 | 219423 | 63.2 | 5627449 | 73906 | 36.6 |
| 203.2 x 9.5mm | ARX-WF20310 | 203.2 | 203.2 | 9.5 | 9.5 | 5632.2 | 10.1 | 41285995 | 406399 | 85.6 | 13331893 | 131260 | 48.8 |
| 203.2 x 12.7mm | ARX-WF20313 | 203.2 | 203.2 | 12.7 | 12.7 | 7425.8 | 13.4 | 52844742 | 520125 | 84.3 | 17789731 | 175178 | 49.0 |
| 254 x 9.5mm | ARX-WF25410 | 254.0 | 254.0 | 9.5 | 9.5 | 7135.5 | 12.8 | 82634425 | 650730 | 107.7 | 26031113 | 205002 | 60.5 |
| 254 x 12.7mm | ARX-WF25413 | 254.0 | 254.0 | 12.7 | 12.7 | 9361.3 | 16.9 | 106638491 | 839673 | 106.9 | 34722026 | 273336 | 61.1 |
| 304.8 x 12.7mm | ARX-WF30513 | 304.8 | 304.8 | 12.7 | 12.7 | 11296.8 | 20.3 | 188323909 | 1236404 | 129.0 | 59983111 | 393617 | 72.9 |
