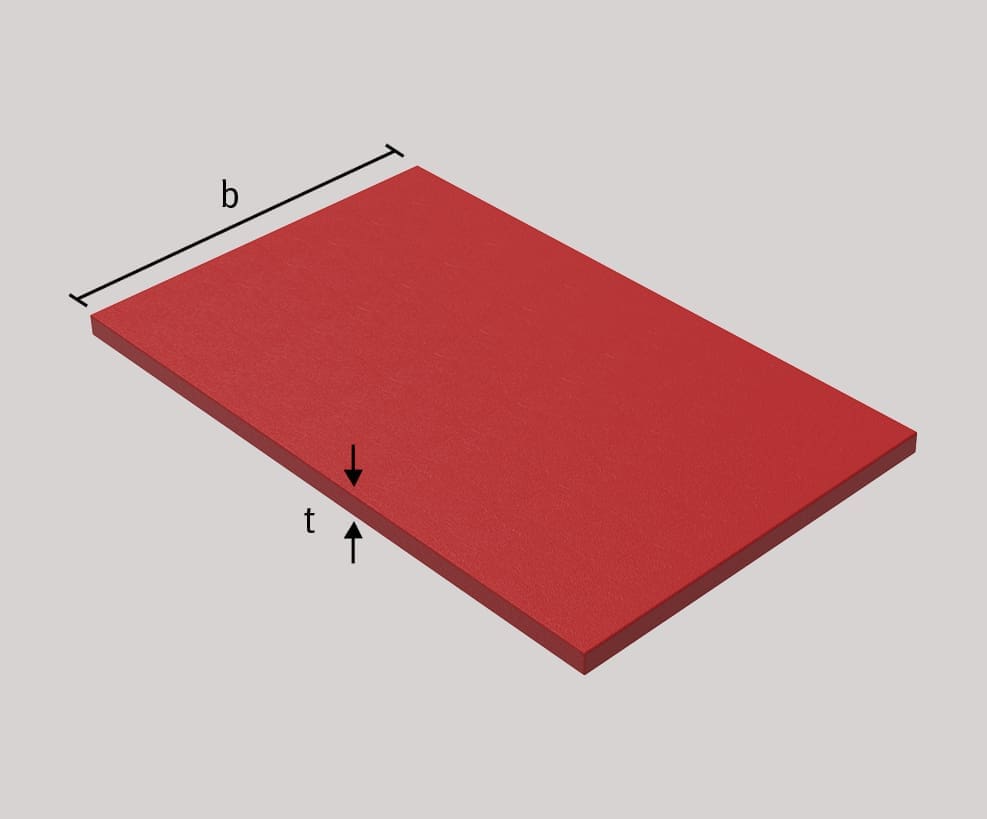

ArchitEX™ FRP STRUCTURAL PROFILES: FLAT SHEET SYSTEMS
The section properties displayed on this page are derived from the standard nominal dimensions of each profile. All profile types included in the table can be supplied, although certain sizes and configurations may require lead time depending on regional availability. For product availability, technical assistance, and pricing details across Asia, contact Treadwell Group directly.
| Flat Sheet | Section Dimensions | Section Properties | |
|---|---|---|---|
| Part | Part Number |
t mm |
Weight Kg/m2 |
| 3.2mm | ARX-FP03 | 3.2 | 6.1 |
| 6.4mm | ARX-FP06 | 6.4 | 12.2 |
| 9.5mm | ARX-FP10 | 9.5 | 18 |
| 12.7mm | ARX-FP13 | 12.7 | 24.1 |
| 15.9mm | ARX-FP16 | 15.9 | 30.2 |
| 19.1mm | ARX-FP19 | 19.1 | 36.1 |
| 25.4mm | ARX-FP25 | 25.4 | 48.3 |
| Note: Standard sheet width is 1200mm. | |||
Uniform Load Data Tables
Comprehensive full-section 3-point bending evaluations were performed on Treadwell Reinforced Plastics’ H-Beams, I-Beams, C Sections, and Square Hollow Sections to assess structural performance under uniform loading conditions. The allowable uniform load tables have been developed using the recorded test data together with the engineering formulas, material properties, and design assumptions outlined below. The theoretical calculations for critical buckling and lateral-torsional buckling are referenced from Chapters 6 and 7 of the ASCE Structural Plastics Design Manual, supporting reliable structural design applications across commercial and industrial projects throughout Asia.
