ArchitEX™ FRP STRUCTURAL SECTIONS: CIRCULAR ROUND BAR
The structural values displayed on this page are derived from the standard profile dimensions of each section. Every profile listed within the table can be supplied; however, selected sizes may be subject to regional stock availability. For current product availability, technical support, and pricing across Asia, please contact Treadwell Group directly.

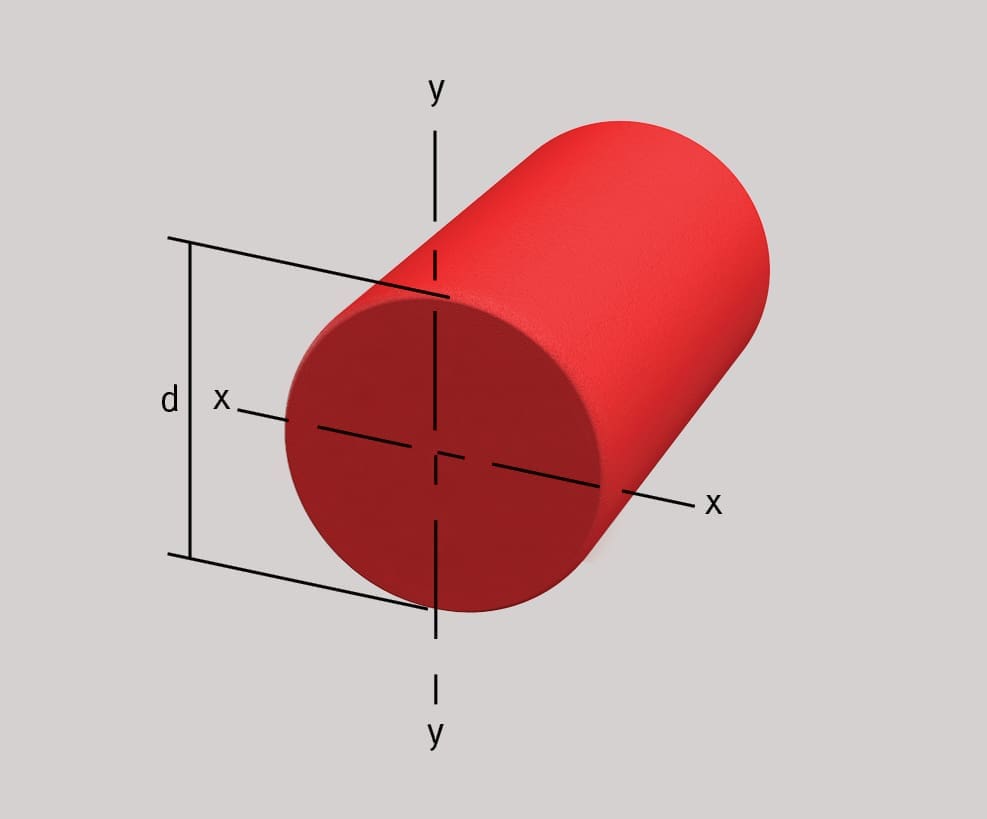

| Circular Round Bar | Section Dimensions | Section Properties | |||||
|---|---|---|---|---|---|---|---|
| Part | Part Number |
d mm |
Area mm2 |
Weight kg/m |
l mm4 |
S mm3 |
r mm |
| 6.4mm | ARX-CB06 | 6.4 | 31.6 | 0.06 | 83 | 26 | 1.6 |
| 7.6mm | ARX-CB07 | 7.6 | 45.8 | 0.08 | 166 | 44 | 1.9 |
| 7.9mm | ARX-CB08 | 7.9 | 49.7 | 0.09 | 191 | 49 | 2.0 |
| 8.9mm | ARX-CB09 | 8.9 | 61.9 | 0.11 | 308 | 69 | 2.2 |
| 9.5mm | ARX-CB10 | 9.5 | 71.0 | 0.13 | 400 | 85 | 2.4 |
| 11.1mm | ARX-CB11 | 11.1 | 96.8 | 0.17 | 749 | 134 | 2.8 |
| 12mm | ARX-CB12A | 12.0 | 112.9 | 0.20 | 999 | 169 | 3.0 |
| 12.2mm | ARX-CB12 | 12.2 | 116.8 | 0.21 | 1082 | 179 | 3.0 |
| 12.7mm | ARX-CB13 | 12.7 | 126.5 | 0.23 | 1290 | 202 | 3.2 |
| 15.9mm | ARX-CB16 | 15.9 | 198.1 | 0.36 | 3122 | 393 | 4.0 |
| 19.1mm | ARX-CB19 | 19.1 | 285.2 | 0.51 | 6493 | 678 | 4.8 |
| 20.6mm | ARX-CB21 | 20.6 | 334.2 | 0.60 | 8907 | 864 | 5.2 |
| 22.2mm | ARX-CB22 | 22.2 | 387.7 | 0.69 | 11987 | 1078 | 5.6 |
| 25.4mm | ARX-CB25 | 25.4 | 506.5 | 0.91 | 20437 | 1609 | 6.4 |
| 31.8mm | ARX-CB32 | 31.8 | 791.6 | 1.42 | 49865 | 3141 | 7.9 |
| 38.1mm | ARX-CB38 | 38.1 | 1139.4 | 2.04 | 103434 | 5429 | 9.5 |
