ArchitEX™ FRP Structural Profiles
ArchitEX™ FRP EMBEDMENT ANGLE PROFILES
The section properties displayed on this page are derived from the standard profile dimensions. Every profile type listed in the table can be supplied, however selected items may be subject to stock availability depending on regional demand. For product availability, technical assistance, and pricing across Asia, please contact Treadwell Group through your nearest regional representative or enquiry channel.

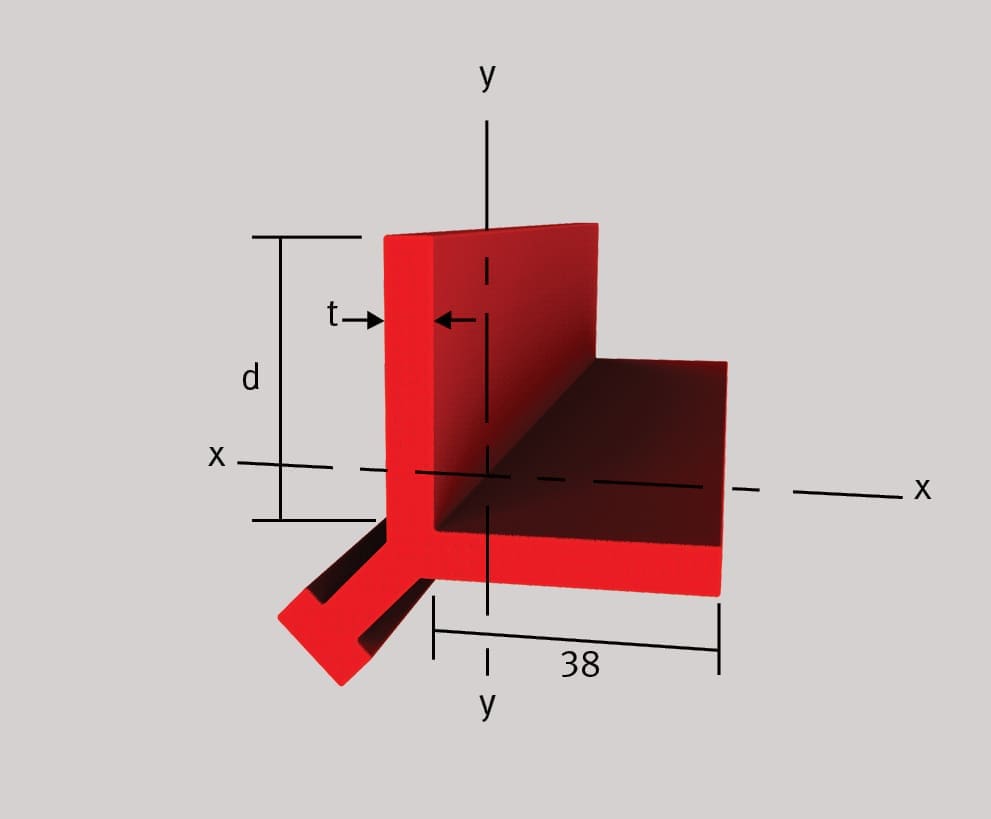

| Embedment Angle | Section Dimensions | Section Properties | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Part | Part Number |
d mm |
t mm |
Area mm2 |
Weight kg/m |
x-x | y-y | ||||
|
l mm4 |
S mm3 |
r mm |
l mm4 |
S mm3 |
r mm |
||||||
| 25.4 X 38.1mm | ARX-EA25 | 25.4 | 6.4 | 696.8 | 1.43 | 116544 | 4916 | 12.9 | 212278 | 5407 | 17.5 |
| 38.1 X 38.1mm | ARX-EA38 | 38.1 | 6.4 | 774.2 | 1.64 | 212278 | 5407 | 16.5 | 212278 | 5407 | 16.5 |
| 50.8 X 38.1mm | ARX-EA51 | 50.8 | 6.4 | 858.1 | 1.68 | 366283 | 8849 | 20.6 | 212278 | 5407 | 15.7 |
