ArchitEX™ FRP Structural Profiles
ArchitEX™ COMPOSITE STRUCTURAL PROFILES: RECTANGULAR HOLLOW FRP SECTION
The section properties displayed on this page are derived from the standard profile dimensions. Every profile shape listed in the table can be supplied; however, selected items may be subject to regional stock availability. For current availability, technical assistance, and pricing details across Asia, contact Treadwell Group for further support.

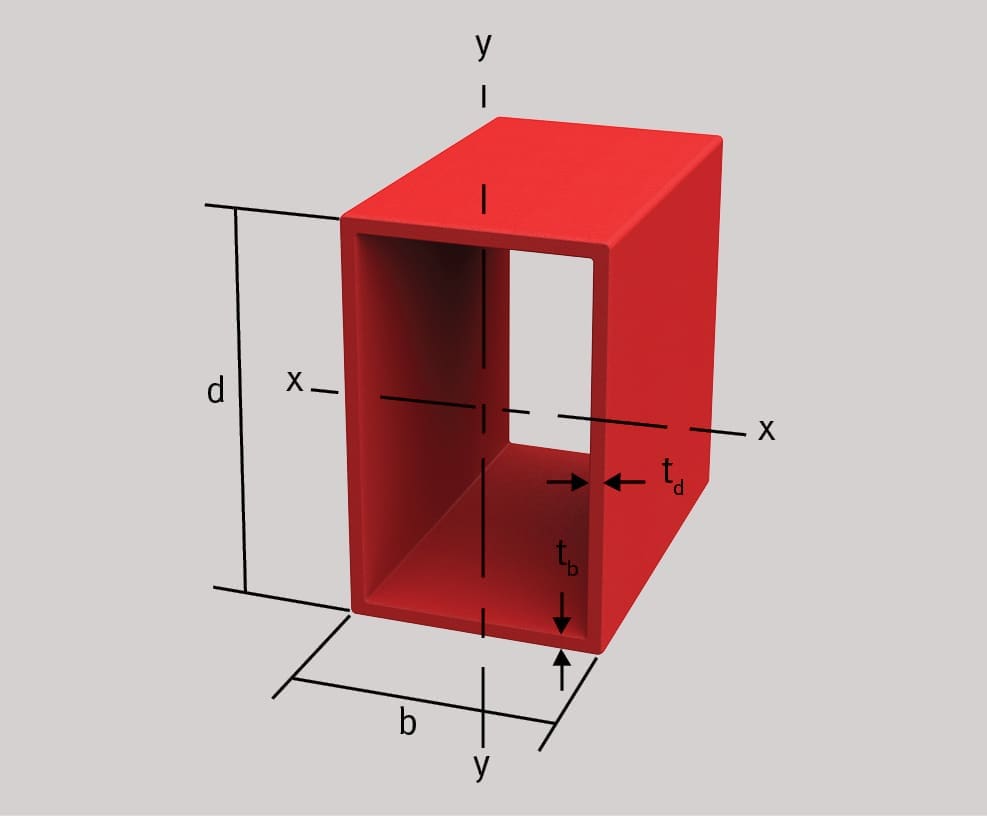

| Rectangular Hollow Section | Section Dimensions | ||||
|---|---|---|---|---|---|
| Part | Part Number |
d mm |
b mm |
td mm |
td mm |
| 38.1 x 19.1 x 3.2mm | ARX-RH03801903 | 38.1 | 19.1 | 3.2 | 3.2 |
| 38.1 x 25.4 x 3.2mm | ARX-RH03802503 | 38.1 | 25.4 | 3.2 | 3.2 |
| 50.8 x 25.4 x 3.2mm | ARX-RH05102503 | 50.8 | 25.4 | 3.2 | 3.2 |
| 100 x 75 x 6.4 | ARX-RH10007506 | 100 | 75 | 6.4 | 6.4 |
| 101.6 x 25.4 x 3.2mm | ARX-RH10202503 | 101.6 | 25.4 | 3.2 | 3.2 |
| 101.6 x 3.2 x 50.8 x 6.4mm | ARX-RH10205106 | 101.6 | 50.8 | 3.2 | 6.4 |
| 111.1 x 3.2 x 34.9 x 4.8mm | ARX-RH11103505 | 111.13 | 34.93 | 3.2 | 4.8 |
| 139.7 x 88.9 x 6.4mm | ARX-RH14008906 | 139.7 | 88.9 | 6.4 | 6.4 |
| 152.4 x 101.6 x 6.4mm | ARX-RH15210206 | 152.4 | 101.6 | 6.4 | 6.4 |
| Rectangular Hollow Section | Section Properties | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Part | Part Number | x-x | ||||||||||
|
l mm4 |
S mm3 |
r mm |
AW mm2 |
l mm4 |
S mm3 |
r mm |
J mm4 |
AW mm2 |
Area mm2 |
Weight kg/m |
||
| 38.1 x 19.1 x 3.2mm | ARX-RH03801903 | 53926 | 2831 | 12.9 | 80.7 | 16530 | 1735 | 7.2 | 38425 | 202.9 | 322.5 | 0.6 |
| 38.1 x 25.4 x 3.2mm | ARX-RH03802503 | 66256 | 3478 | 13.5 | 121.0 | 33738 | 2657 | 9.6 | 66944 | 202.9 | 362.8 | 0.7 |
| 50.8 x 25.4 x 3.2mm | ARX-RH05102503 | 138066 | 5436 | 16.0 | 121.0 | 43994 | 3464 | 9.9 | 104510 | 284.2 | 443.4 | 0.8 |
| 100 x 75 x 6.4 | ARX-H10007506 | 2854389 | 57088 | 36.9 | 558.1 | 1786067 | 47628 | 29.2 | 4640456 | 439.0 | 2102.5 | 3.9 |
| 101.6 x 25.4 x 3.2mm | ARX-RH10202503 | 848044 | 16694 | 33.3 | 121.0 | 83870 | 6604 | 10.5 | 251849 | 609.3 | 765.9 | 1.4 |
| 101.6 x 3.2 x 50.8 x 6.4mm | ARX-RH10205106 | 1837272 | 36167 | 39.0 | 564.5 | 459318 | 18083 | 19.5 | 1097485 | 609.3 | 1209.4 | 2.2 |
| 111.1 x 3.2 x 34.9 x 4.8mm | ARX-RH11103505 | 1496450 | 26933 | 39.1 | 272.2 | 196946 | 11278 | 14.2 | 567844 | 670.3 | 977.6 | 1.8 |
| 139.7 x 88.9 x 6.4mm | ARX-RH14008906 | 7190831 | 102947 | 51.2 | 967.7 | 3496778 | 78668 | 35.7 | 7128059 | 1624.3 | 2741.3 | 4.9 |
| 152.4 x 101.6 x 6.4mm | ARX-RH15210206 | 9770599 | 128223 | 56.5 | 1129.0 | 5140025 | 101182 | 41.0 | 10185433 | 1786.9 | 3063.8 | 5.5 |
